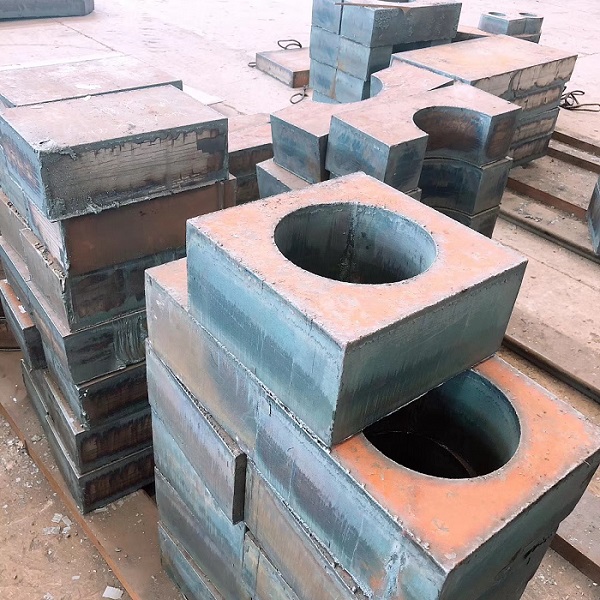

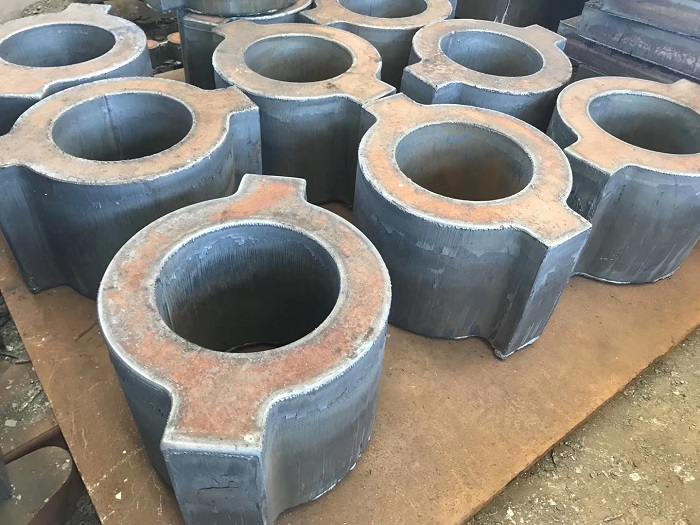

China is the largest crude steel production country in the world, with annual crude steel production reaching 900 million tons, accounting for 51.3% of the world's crude steel production. With the upgrading and refinement of China's industry, in addition, for thick steel plate and extra thick steel plate, it is not economical for customers to buy materials and then cut by themselves. Therefore, many Steel plate cutting service manufacturers (specialized in steel plate cutting to size for sales) have emerged, especially for thick steel plate and extra thick steel plate. The extra thick steel plate is usually used to make all kinds of machining parts. The most typical example is the bearing block, raw material of bearing block are made of casting steel before, now are changed to use thick steel plate cutting, comparing with cast steel, cutting thick steel plate has advantage of high efficiency, short production period, also being cheap.
Since the steel mills who producing special thickness steel plate in China are mainly Shagang Group, Hegang Wuyang Iron and Steel Co, Ltd，and Nanjing Nangang Iron and Steel Co, Ltd, they are located in Zhangjiagang city, Jiangsu province, Pingdingshan City, Henan Province and Nanjing city etc. several big steel mills, therefore, the steel plate cutting service (cut to size for sales) manufacturers are basically concentrated in these cities or their surrounding areas, such as Wuxi, Jiangyin and Pingdingshan city.
Q235B steel plate cut for sales, Q345B steel plate flame cut for sales, and Q345D thick steel plate for sales. The steel plate grades cut to size for sales mainly include Q235B, Q345B and 45 steel, which are the most common and most commonly used structural steel plates in the market. Since these steel plate market demands is large, so all cutting service plants survive.
Thickness up to 300mm, materials are normal structure steel plate such as Q235B, Q345B, Q345D,45#,etc. they equivalent to EU and USA standard and grade are below.
- Europe S235JR EN10025-2 / or Japan JIS G3101－1995 SS400 or /USA ASTM：A36
- Japan- JIS G3106 SS490；American -ASTM A572 Gr. 50(345); Europe - EN-10025 S355JR
- Europe- DIN EN10083-2 C45; American-ASTM 1045; Japan - JIS S45C.

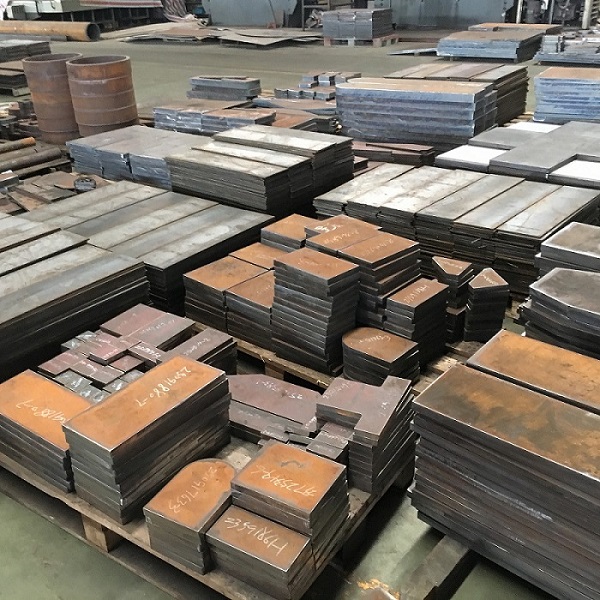

We offer steel plate cut to size service. S235JR steel plate cut for sales, S355JR thick steel plate flame cut for sales, and C45 thick steel plate cut for sales，1045 steel plate flame cut to size.
The maximum thickness of steel plate up to 300 mm. The cutting shape can be any shape, and the cutting dimension is generally any size less than 2500 mm. The length of the cutting depends on the length of the steel plate and the cutting length of the cutting machine. Generally, the width of steel plate is within 2.5m and the length is about 10m. The effective cutting width of CNC cutting machine is also 2.5m and the length is about 13m. Customers can provide PDF drawings or CAD drawings.
The cutting methods are mainly CNC flame cutting and CNC plasma cutting, and plasma cutting is generally used for those less than 50mm. The cutting accuracy depends on the thickness and dimension length, generally within ± 2mm.
After cutting, if the customer requires grinding burr and cutting slag, we will do it. If the customer needs to write the drawing number on each cutting piece, we can also write it according to the customer's drawing number.
The packing is usually pallets and then tied with steel straps.
