Product Name:

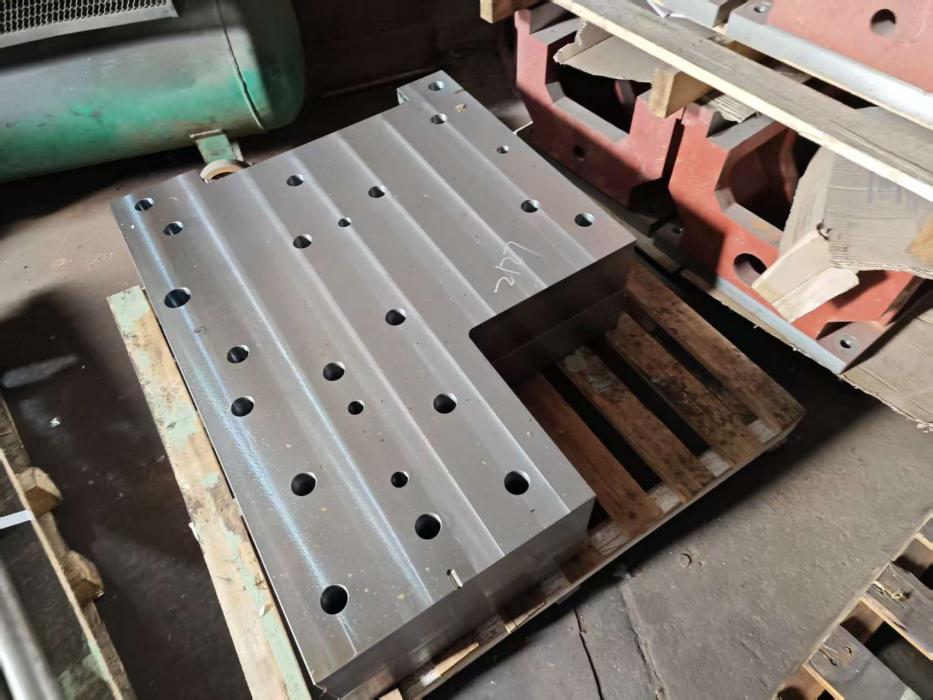

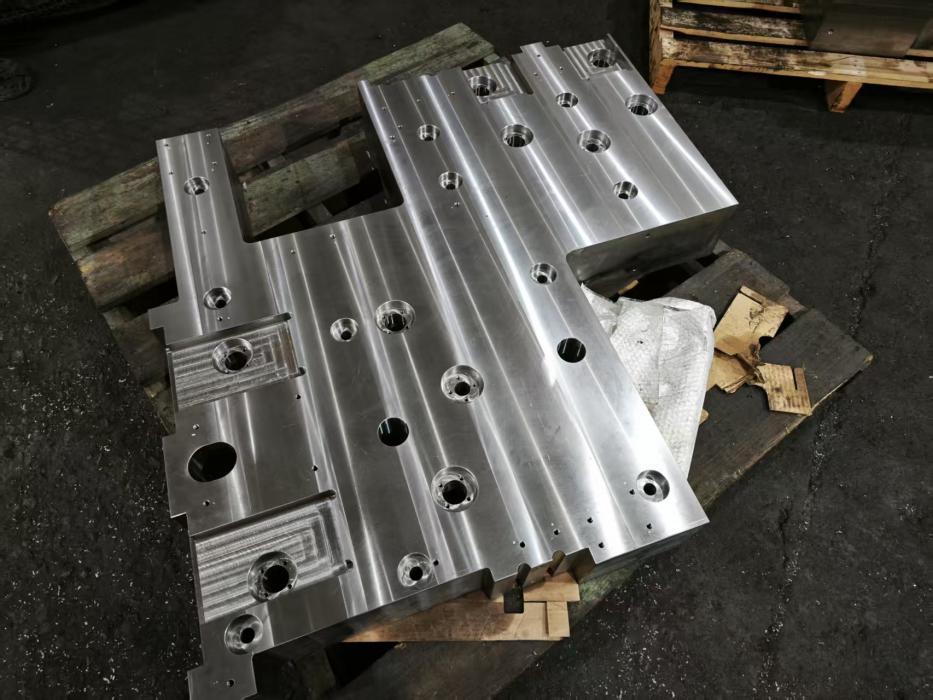

Precision CNC Milled Mold Base Plate – Heavy Duty Steel Component

Product Description:

This precision-machined steel base plate is manufactured using advanced CNC gantry machining centers. Designed for high-load industrial applications, it features complex internal channels and precise mounting holes, offering excellent structural stability and durability. Ideal for injection molds, die-casting dies, or heavy machinery frames.

Specifications:

-       Material: 42CrMo Alloy Steel (Equivalent to AISI 4140 / DIN 1.7225)

-       Dimensions (L x W x H): 1200 x 800 x 300 mm

-       Dimensional Tolerance: ±0.05 mm

-       Surface Finish: Ra 1.6 - 3.2 μm (Milled Surface)

-       Machining Equipment: 3-Axis & 5-Axis CNC Gantry Machining Center

Key Features & Advantages:

-       High Precision Machining: Strictly controlled tolerances ensure perfect assembly and alignment with mating components.

-       Superior Material Strength: Made from high-grade 42CrMo alloy steel, providing exceptional toughness and fatigue resistance for heavy-duty use.

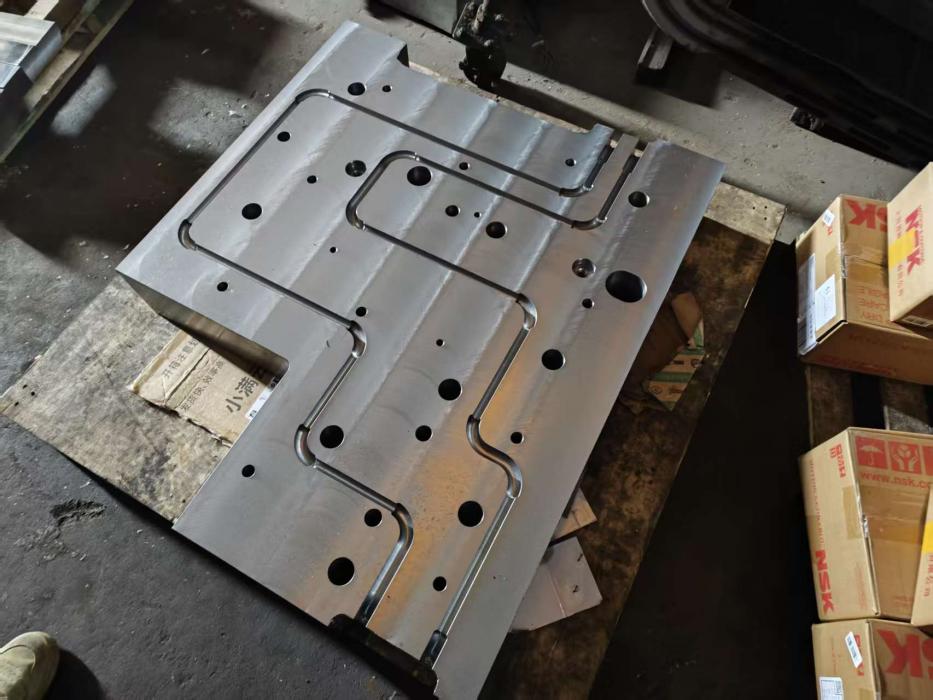

-       Complex Geometry Capability: Capable of machining intricate cooling channels and deep cavities as shown in the design.

-       Rigorous Quality Control: 100% dimensionally inspected using CMM (Coordinate Measuring Machine) before shipment to guarantee zero defects.
